詳細說明

〓 WA TYPE

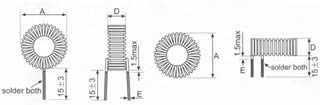

●　EXTERNAL DIMENSIONS UNIT：mm(外形尺寸)

T-2-5R0M～T-2-151M磁環電感

T-2 TYPE

●SPECIFICATION TABLE

PART NUMBER 品名	INDUCTANCE (uH) 1KHz/OA 電感值	INDUCTANCE (uH) 1KHz/maxIDC 電感值	IDC(max) (A) 定格電流	DC RESISTANCE (Ω)max 直流電阻	DIMENSION(mm) （尺寸）		WEIGHT (g/pcs) 重量
PART NUMBER 品名	INDUCTANCE (uH) 1KHz/OA 電感值	INDUCTANCE (uH) 1KHz/maxIDC 電感值	IDC(max) (A) 定格電流	DC RESISTANCE (Ω)max 直流電阻	A	D	WEIGHT (g/pcs) 重量
T-2-5ROM-2026	5.00	4.90	0.50	0.007	7.50	4.50	0.40
T-2-9ROM-2026	9.00	8.80	0.30	0.011	8.00	4.50	0.20
T-2-150M-2026	15.00	13.50	0.50	0.070	7.50	4.50	0.40
T-2-200M-2026	20.00	19.80	0.20	0.198	7.50	4.00	0.20
T-2-270M-2026	27.00	27.00	0.10	0.033	7.50	4.00	0.20
T-2-270M-2026	27.00	25.50	0.30	0.031	8.00	4.50	0.20
T-2-100M-3026	10.00	7.70	2.00	0.017	12.00	7.00	1.60
T-2-120M-3026	12.00	10.70	1.00	0.040	10.50	6.00	1.20
T-2-320M-3026	32.00	25.00	1.00	0.065	12.00	7.00	1.40
T-2-370M-3026	37.00	33.70	0.50	0.134	10.00	5.50	1.00
T-2-141M-3026	140.00	107.00	0.50	0.265	10.00	6.00	1.20
T-2-8R2M-3726	8.20	7.20	2.00	0.017	14.50	7.00	2.00
T-2-220M-3726	22.00	17.00	2.00	0.030	14.50	7.50	2.40
T-2-240M-3726	24.00	22.00	1.00	0.055	13.50	6.00	1.60
T-2-560M-3726	56.00	53.00	0.50	0.181	12.50	5.50	1.40
T-2-680M-3726	68.00	53.00	1.00	0.095	13.50	6.50	2.00
T-2-241M-3726	240.00	190.00	0.50	0.360	13.00	6.50	1.60
T-2-150M-4426	15.00	12.60	2.00	0.023	15.50	7.50	2.80
T-2-430M-4426	43.00	37.00	1.00	0.074	14.50	7.00	2.60
T-2-680M-4426	68.00	42.00	2.00	0.056	15.50	9.00	3.80
T-2-111M-4426	110.00	100.00	0.50	0.250	14.00	6.50	2.40
T-2-141M-4426	140.00	104.00	1.00	0.140	15.00	7.50	3.20
T-2-361M-4426	360.00	285.00	0.50	0.460	14.50	7.50	2.80
T-2-200M-5026	20.00	15.00	3.00	0.021	17.50	9.00	4.40
T-2-300M-5026	30.00	25.00	2.00	0.035	17.00	8.50	4.00
T-2-600M-5026	60.00	35.00	3.00	0.038	18.00	10.0	5.80
T-2-680M-5026	68.00	60.00	1.00	0.101	16.00	7.50	3.60
T-2-10IM-5026	100.00	63.00	2.00	0.081	17.00	9.00	5.20
T-2-221M-5026	220.00	162.00	1.00	0.190	16.50	8.00	4.40
T-2-220M-6026	22.00	15.00	5.00	0.014	21.50	11.50	8.00
T-2-290M-6026	29.00	20.00	4.00	0.020	21.00	11.00	7.80
T-2-350M-6026	35.00	28。oo	3.00	0.026	20.50	10.50	7.60
T-2-580M-6026	58.00	45.00	2.00	0.061	20.00	10.00	7.20
T-2-900M-6026	90.00	52.00	3.00	0.044	20.50	12.50	9.20
T-2-111M-6026	110.00	79.00	2.00	O．069	19.50	10.00	8.00
T-2-131M-6026	130.00	116.00	1.00	0.146	19.00	9.00	6.40
T-2471M-6026	470.00	310.00	1.00	0.286	21.00	11.00	7.60
T-2-250M-6026	25.00	18.00	5.00	0.016	24.00	10.50	9.20
T-2-320M-6826	32.00	24.00	4.00	0.021	23.50	10.00	9.00
T-2-430M-6826	43.00	30.00	3.00	0.030	23.00	9.50	8.80
T-2-650M-6826	65.00	55.00	2.00	0.055	22.00	9.00	8.20
T-2-111M-6826	110.00	56.00	4.00	0.042	23.50	11.00	11.40
T-2-131M-6826	130.00	77.00	3.00	0.055	23.00	10.50	10.40
T-2-151M-6826	150.00	137.00	1.00	0.159	21.50	7.50	7.60

●　PART NUMBERING SYSTEM(品名系統)

T-2-5R0M～T-2-151M磁環電感

1 SERIES NAME      品名       指磁環線圈
3 INDUCTANCE      電感值      前兩位為有效數字，第三位表零的個數
4 TOLERANCE CODE 公差        J:±5%,K:±10%,L:±15% M:±20%,P:±25% ,N:±30%s
5 DIMENSIONS      尺寸        外徑（英寸）
5 CORE MAKING                指磁環材質

●　FEATURES（特性）

High Saturation Materal. Wide Inductance Range. High Current Capability .
Low DC resistance.

●　APPLICATIONS (用途)

SwiT-2hing Regulators . Automotive Systems. PowerAmplifiers. Power Supplies.
SCR and Triac Controls. Speaker Crossover Networks. EM/RFI Suppression.

●　GENERAL ConDITIONS (一般條件)

Operating temperature:-55℃ ～+55℃ . Storage temperature:-40 ℃～+40℃
Inductance range:l u H～0000 u H. Current rating based on current density
about 8A/mm2 I ron Power Core Material 26:50Hz～100KHz . Iron Power Core
Material 52:10KHz～500KHz

★ Design As Gustomer's Requested Specifications. ( 根據客戶要求參數來設計！)
